产品信息:
|
| 额定容量: | 100Ah | 额定电压: | 3.2V |
|---|---|---|---|
| 内阻: | ＜0.6mΩ | 工作电压: | 2.5V~3.65V |
| 尺寸: | 60*320mm | 重量: | 1.90kg±0.2kg |

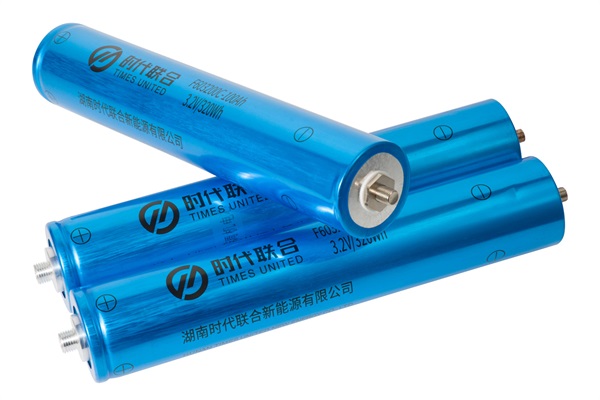

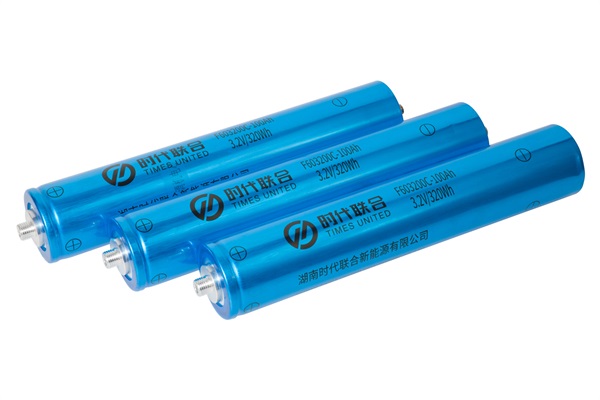

The 100ah cylindrical battery cell uses an innovative lithium battery production process, low pollution and high quality. Independent development of low-pressure safety system, higher reliability.
Compared with the traditional cylindrical battery, based on maintaining high specific energy and high consistency, it has a high capacity, Low internal resistance, low-temperature rise, high rate, long life, high safety and other advantages. Suitable for new energy storage, steam Car, ship, warehousing logistics, construction machinery and other fields.
Full-tab, High Rate
C, Low Resistance,
Even Temperature
Rise, High Energy Density, High
Consistency
Excel. under various Temp, Long Cycle
Life, Low Pollution, High
Safety
Item | F603200C-100Ah |
Nominal Capacity | 100Ah ,0.5 C discharging（25±2℃） |
Nominal Voltage | 3.2V |
Charge Ending Voltage | 3.65V |
Discharge Ending Voltage | 2.5V（≥0℃） |
Standard Discharging Method | 25±2℃ 0.5C constant current discharge to 2.5V |
Max. Pulse Charging Current | 1.5C (15℃～45℃, 50%SOC) ≤30S |
Max. Pulse Discharging Current | 3C (15℃～45℃, 50%SOC) ≤30S |
Operating environment | Charging: -0℃-55℃, max.90%RH |
Impedance | ＜0.6mΩ |

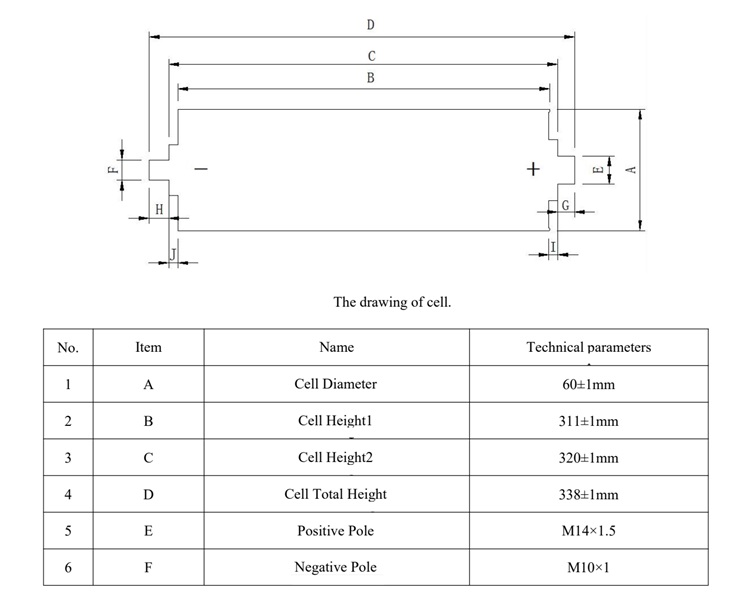

Size | Diameter:60±1mm |
Cell Weight | 1.90kg±0.2kg |
Mass Energy Density | 168Wh/Kg |
Volume Energy Density | 364Wh/L |
Cycle Life | 2000times @80%DOD |

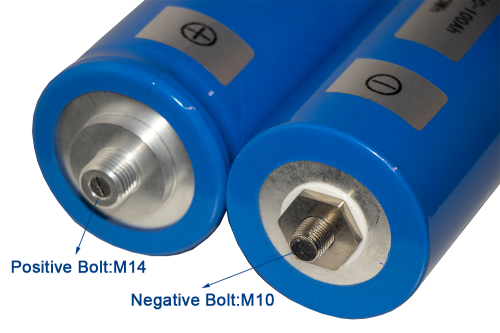

Easy to assemble, use 14mm bolts for the positive pole and 10mm bolts for the
negative pole.Free teaching to help you
learn lithium
battery knowledge.
DIY your LiFePO4 battery banks, built the battery cells in series and parallel to get 12V 24V 36V 48V 60V 72V 80V 96V lifepo4 battery packs.
