宁德时代12V 201Ah & 271Ah磷酸铁锂电池模组

产品信息:

产地:	中国
品牌:	宁德时代
认证:	CE
型号:

运输及付款:

零售价:	4083 - 4638元
批发价:	协商
包装:	纸箱或木箱
付款方式:	T/T

咨询

额定容量:	额定电压:	12V
内阻:	工作电压:	10V～14.6V
尺寸:	重量:

产品描述

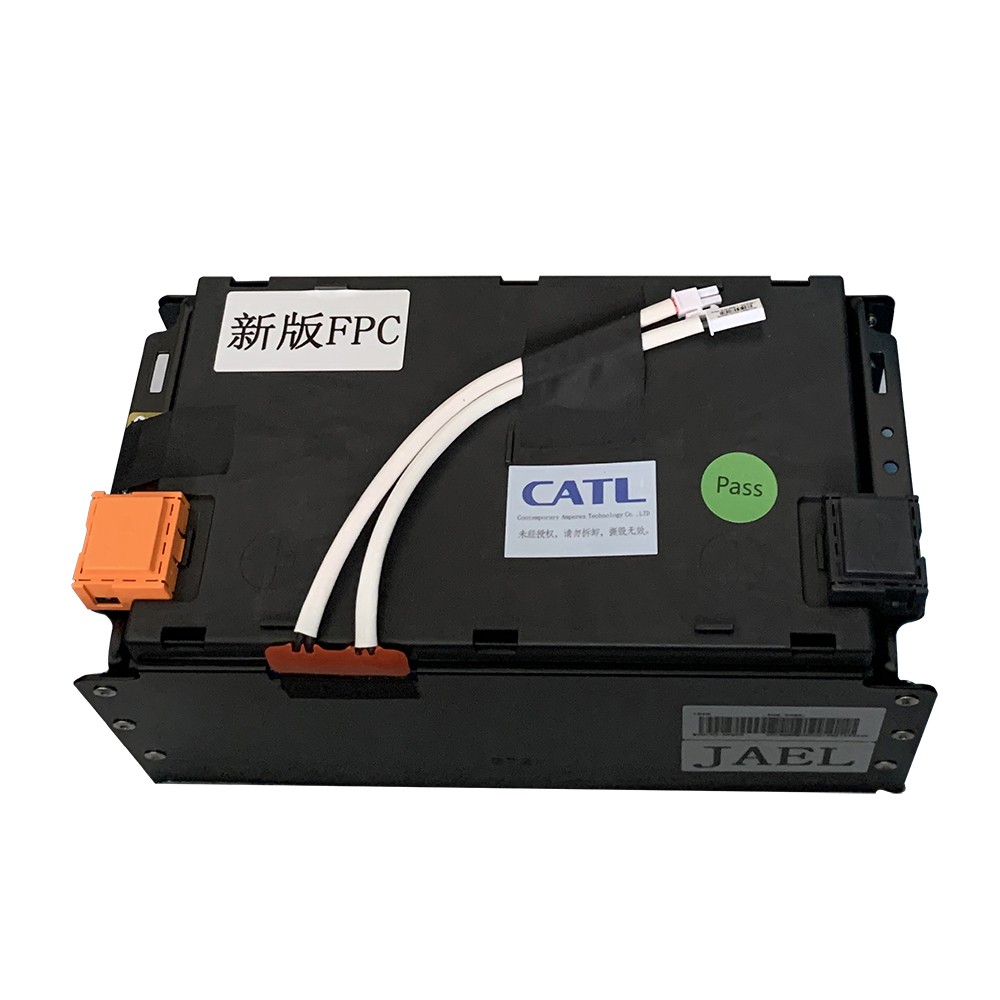

CATL 12V 201Ah & 271Ah LiFePO4 Battery Module

Item	Parameters
Module	12.88V202Ah	12.88V271Ah
Nominal Capacity	202Ah @ RT， 1C	271Ah @ RT， 1C
Nominal Voltage	12.88V @25℃
Operation Voltage	10V～14.6V
Energy	≥2601Wh，BOL @1C ，RT	≥3490Wh，BOL @1C ，RT
Available SOC range	0% ~ 100%
SOC transport range	40%
Operation Temperature	Charging：0℃~65℃；Discharging：-30℃～65℃
Storage Temperature	-40°C ~ 60 °C
Working Humidity	5 % ~ 95 %
Standard Charge Current	0.5C=101A	0.5C=135.5A
Cycle life	1C/1C， RT,3500cycle,≥80%DOD
Self-discharge Rate	RT，100% SOC，≤3.5%/month
Weight	≤19.7 Kg	≤25.2 Kg
Dimension	266.22L177.5W236.6H	337.5L177.5W236.6H

The module is composed of 4 electric cells in series, and is composed of sheet metal end plate, side plate, heating film, FPC and top cover of the module.Module heating film gives module heating function,

The FPC is responsible for collecting the voltage and temperature of the cell when the module is working. The blister cover of the module can protect the cell and insulation.

BMS parameter requirements:

A) monomer voltage sampling accuracy error ≤5mV;

B)SOC estimation accuracy error ≤8%;

C)SOH accuracy error ≤5%;

D) current sampling accuracy ≤±1% FSR;

E) temperature sampling accuracy ±2℃;
